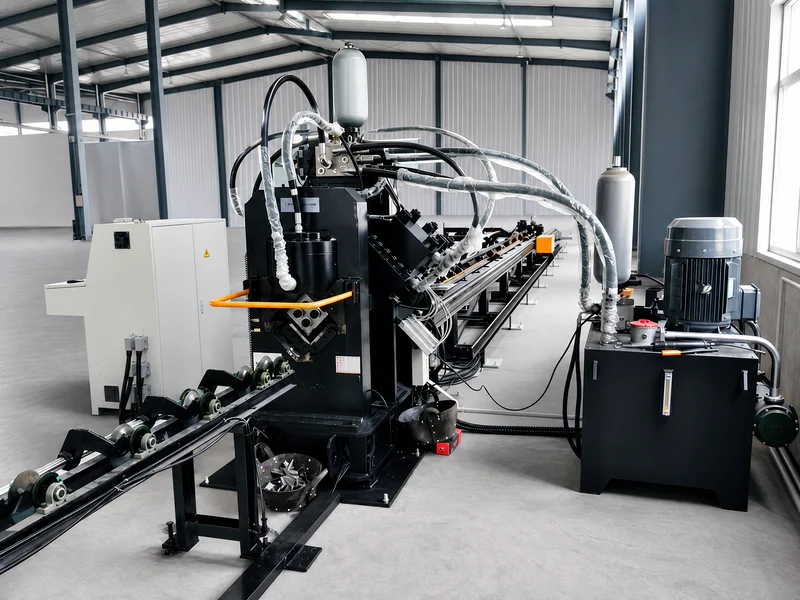

China CNC Angle Line Factory
Designing and manufacturing heavy-duty CNC angle lines for angle steel fabrication, transmission & communication towers and structural steel projects.
18+
Years Experience
What's On This Page
Jump to the section that matters most to your equipment sourcing decision.
CNC Angle Line Applications
Designed for different angle steel fabrication scenarios and project requirements

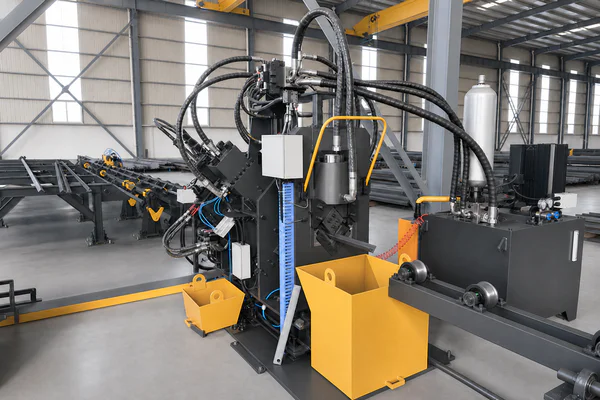

Single Angle Steel Processing
For standalone angle steel punching, marking and shearing operations
Designed for factories processing angle steel as individual components, focusing on stable punching, accurate marking and clean shearing for daily production.

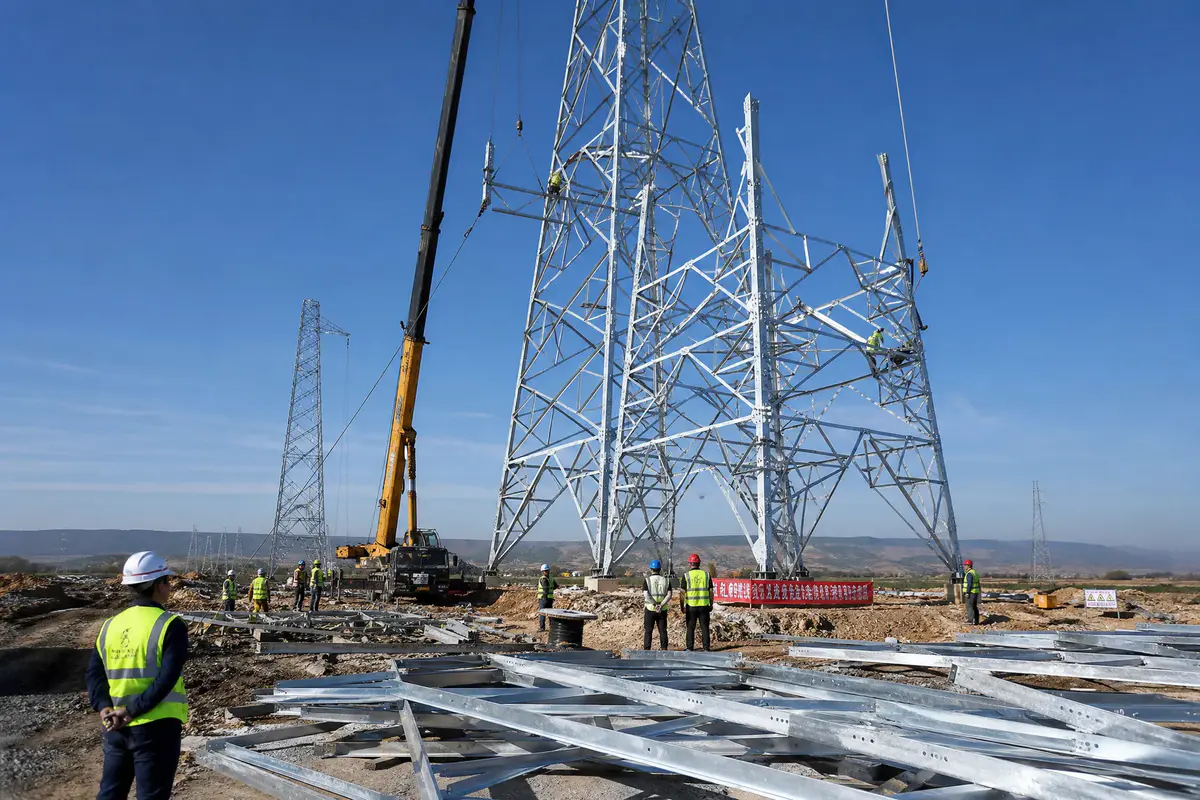

Transmission Tower Fabrication
For power transmission tower and electricity infrastructure projects
Widely used for processing angle steel parts for transmission towers, meeting the requirements of large-scale production, consistent accuracy and long-term operation.

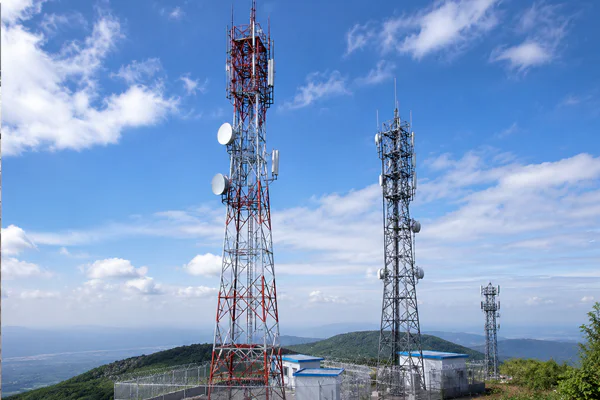

Communication Tower Projects
For communication towers, steel towers and similar lattice structures
Suitable for manufacturing angle steel components used in communication towers and steel towers, supporting multi-hole punching, marking and shearing in one production line.

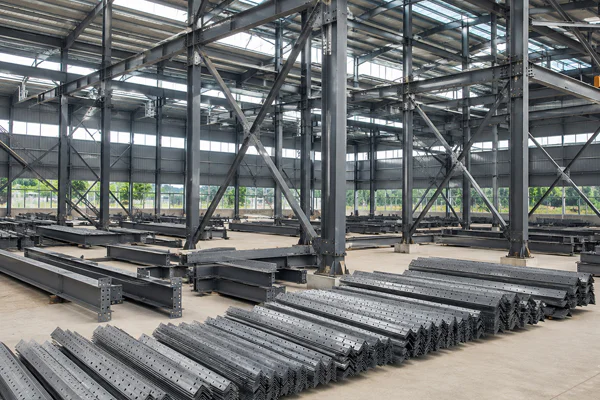

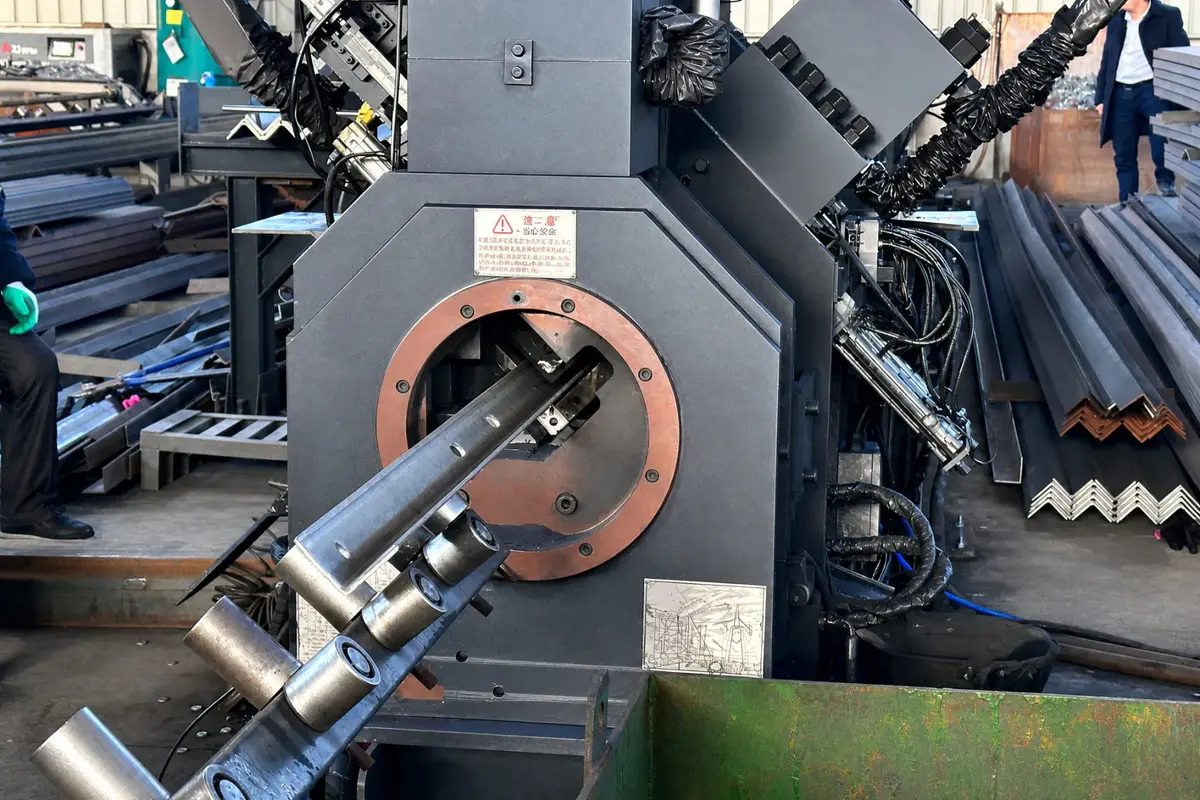

Structural Steel Fabrication
For angle steel used in structural steel and construction projects
Applied in steel structure fabrication where angle steel is part of frames, supports or bracing systems, requiring reliable processing quality and flexible specifications.

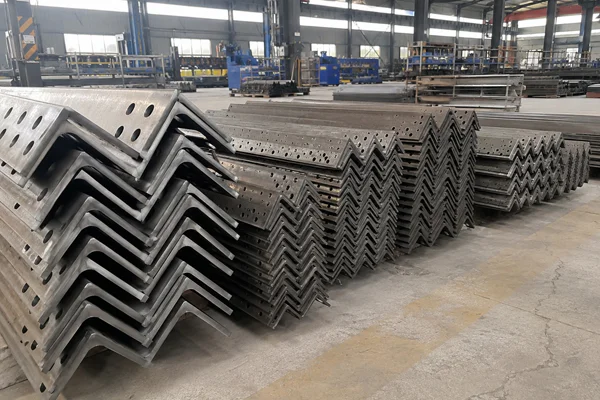

Different Sizes & Specifications
For processing various angle steel sizes and material grades
The CNC angle line can be configured to handle different angle steel sizes, thicknesses and material strengths, suitable for diverse project requirements.

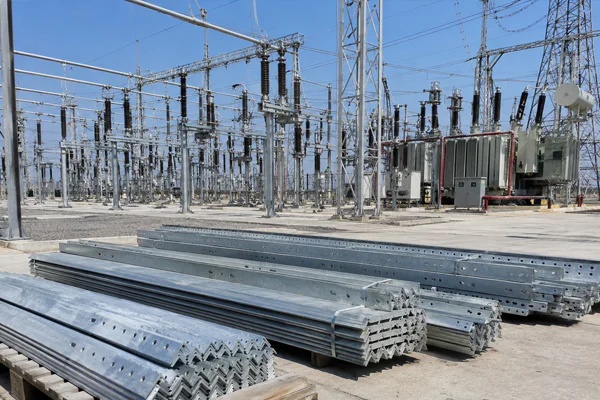

Substation & Power Infrastructure
For substation frames, bus bar supports and power grid structures
Used in manufacturing angle steel components for substations, switchyard structures and other power infrastructure, requiring precise hole positioning and consistent quality.
If you are processing angle steel for transmission towers, steel towers or structural steel projects, this CNC angle line is designed for your application.
Common Challenges in CNC Angle Line Operation
Key issues faced by angle steel manufacturers during daily production
Long-Term Processing Accuracy Stability
Maintaining consistent punching, marking and shearing accuracy becomes difficult during long-term operation, especially in continuous production.
Low Efficiency in Traditional Processing
Manual or semi-automatic angle steel processing often results in low efficiency, uneven quality and difficulty in meeting project schedules.
Punching and Shearing Deformation
Angle steel may deform during punching or shearing, leading to dimensional errors and rework, especially when processing thicker materials.
Complicated Steps & High Labor Intensity
Traditional angle steel processing requires multiple separate steps, increasing labor intensity, manpower demand and management difficulty.
Reliability During Continuous Operation
Continuous operation over long periods may cause unexpected downtime, affecting production stability and delivery timelines.
Complex Maintenance & Frequent Downtime
Frequent maintenance requirements and complicated machine structures can lead to long shutdown times and increased operating costs.
High Dependence on Skilled Operators
Operating traditional or complex CNC angle lines often relies heavily on experienced operators, creating training challenges and operational risks.
Time-Consuming Specification Changeover
Changing angle steel sizes, hole patterns or processing requirements may require long adjustment times, reducing overall production efficiency.
Engineering Design Behind Our CNC Angle Lines
Engineering design considerations based on long-term angle steel processing experience

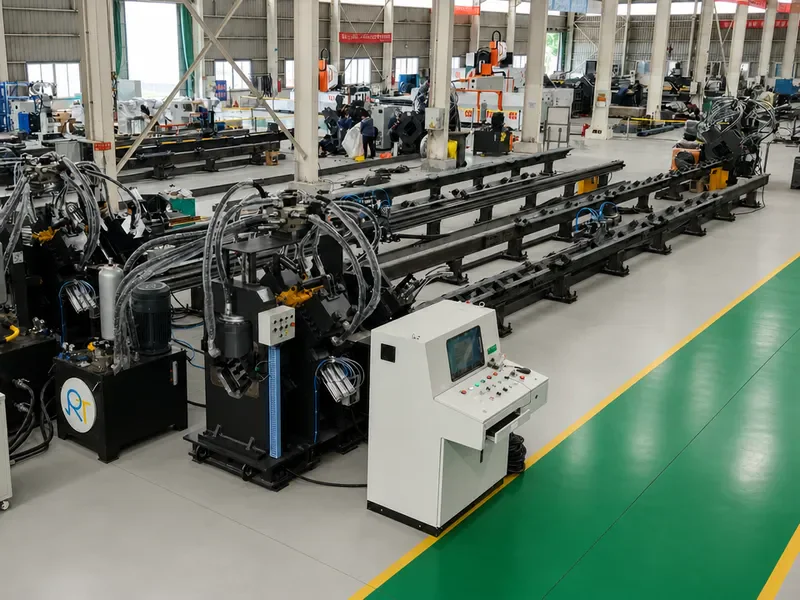

System Design for Long-Term Processing Accuracy
The CNC angle line is designed as an integrated processing system, allowing punching, marking and shearing to be completed within a unified workflow.
By reducing repeated positioning and manual intervention between processes, the system helps maintain consistent processing accuracy during long-term operation.
The overall layout and processing sequence are designed to minimize accumulated tolerances and deformation during angle steel fabrication.

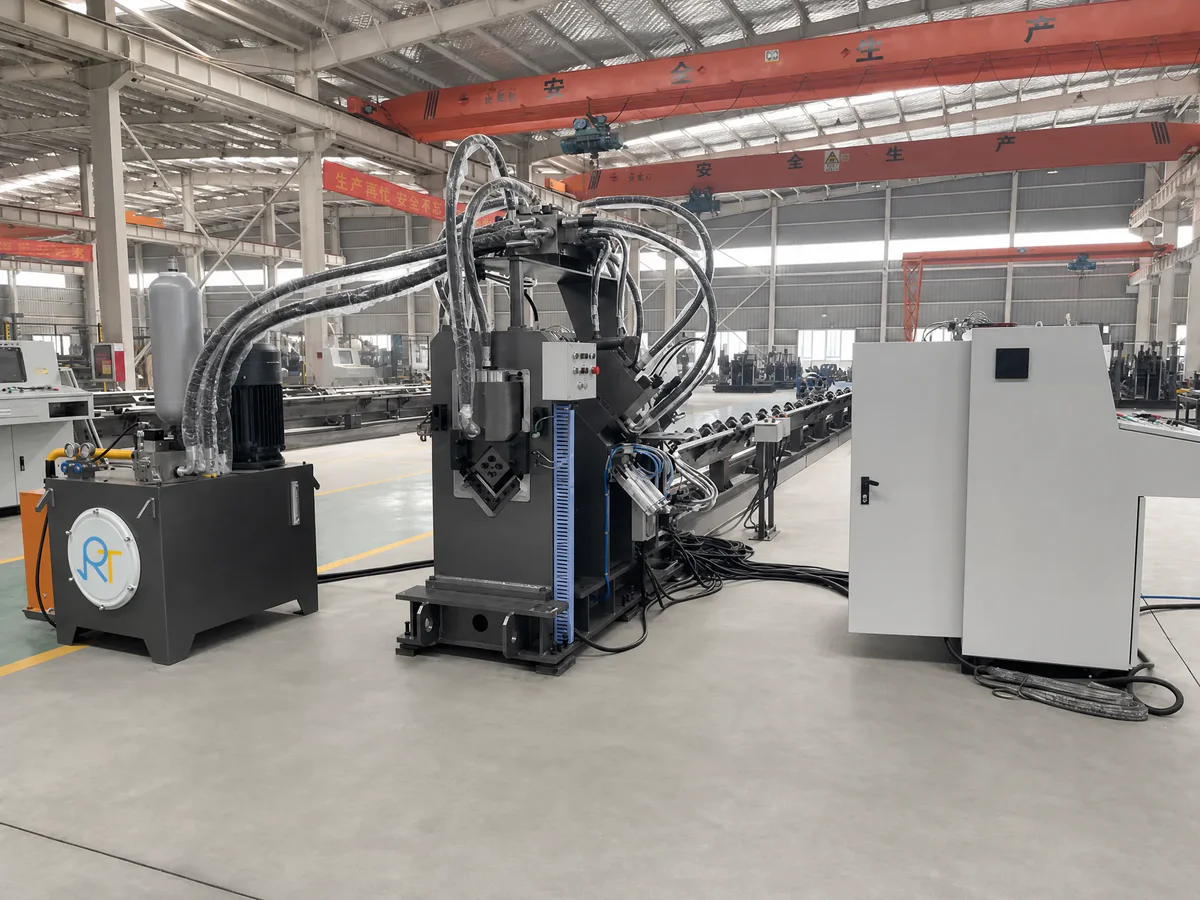

Heavy-Duty Structure for Stable Continuous Operation
The machine structure is designed for continuous and heavy-duty operation commonly required in transmission tower and steel construction projects.
Key load-bearing components are reinforced to ensure structural rigidity during high-frequency punching and shearing.
This structural design supports stable operation over long production cycles while reducing vibration and mechanical fatigue.

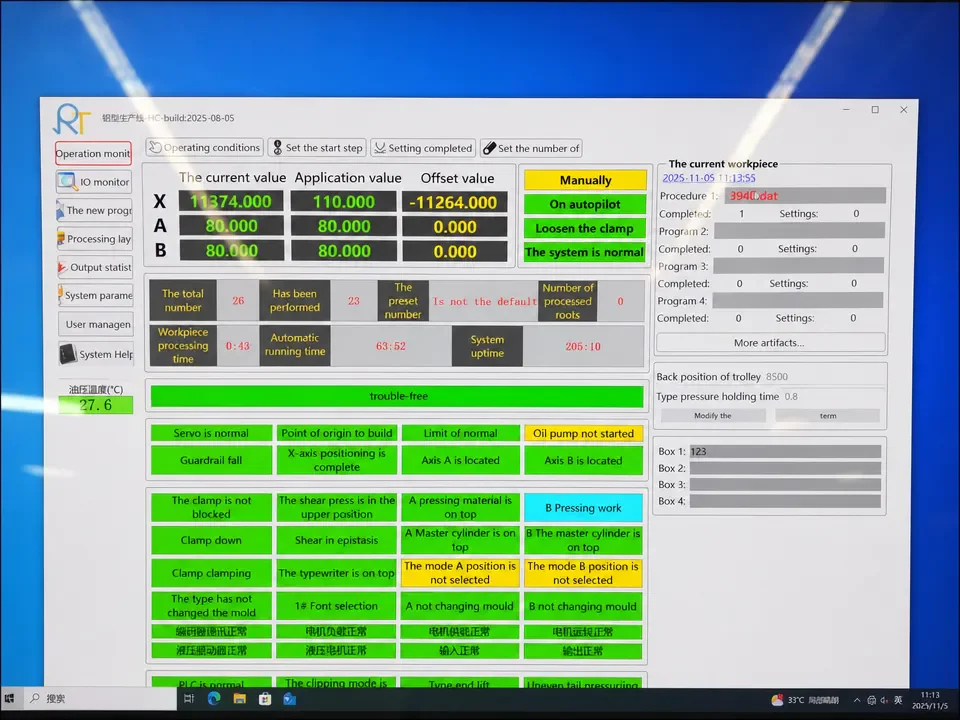

Control Logic Designed for Easy and Reliable Operation
The control system is developed to simplify daily operation and reduce dependence on highly skilled operators.
Processing parameters, operation steps and production sequences are managed through a centralized control interface, allowing operators to focus on production rather than complex adjustments.
This control logic helps improve operational consistency and reduce human errors in daily use.

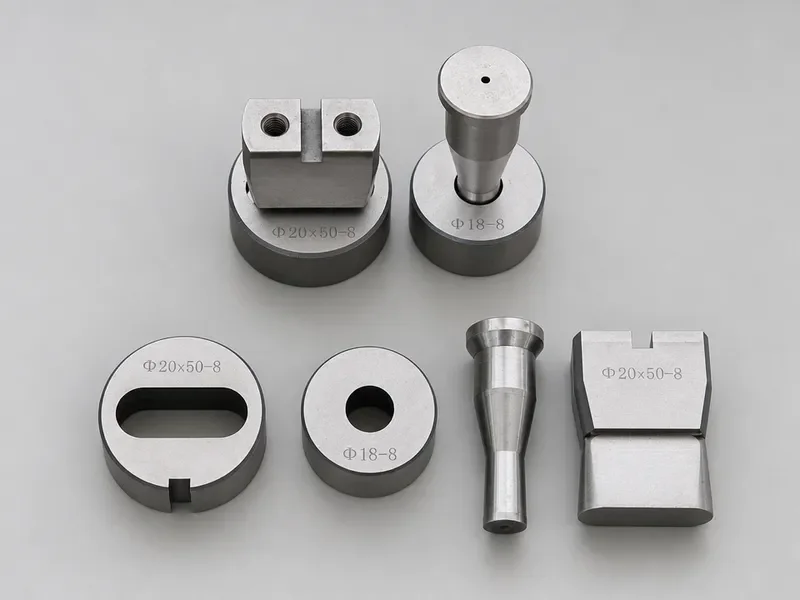

Modular Design for Maintenance and Specification Changeover
The CNC angle line adopts a modular design concept, allowing key functional units to be accessed and maintained independently.
This structure helps shorten maintenance time and reduces machine downtime during routine servicing.
When changing angle steel specifications or processing requirements, the modular layout allows for more efficient adjustment and setup.
Typical CNC Angle Line Configuration
Standard working process of a CNC angle line - from material loading to finished stacking

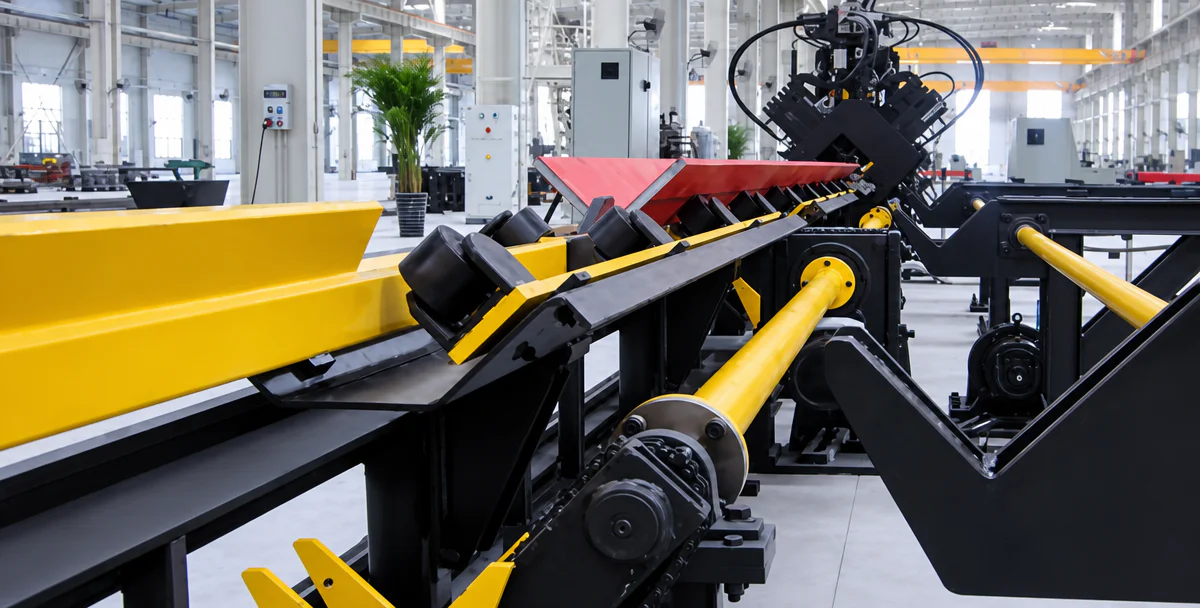

Material Loading
Angle steel is loaded onto the production line to prepare for automatic processing.
Material Loading
Angle steel is loaded onto the production line to prepare for automatic processing.
CNC Feeding
The CNC feeding system positions and feeds angle steel accurately according to programmed requirements.
Marking
Required marks are applied to the angle steel surface to identify part information and processing positions.
Configuration may vary based on specific project requirements. Contact us for customized solutions.
Processing Capacity of CNC Angle Lines
Production capability designed for continuous angle steel fabrication — focused on stable output and integrated processing for industrial projects.

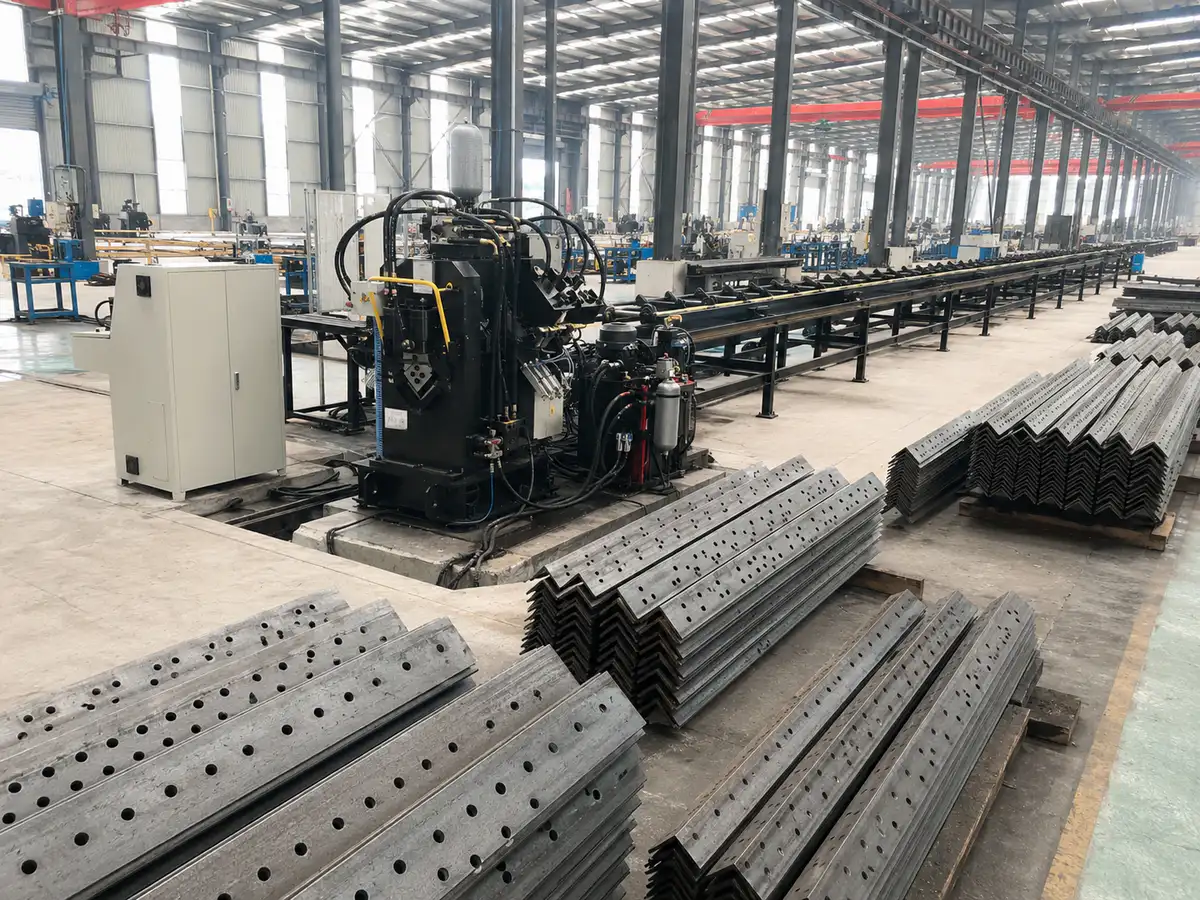

Integrated Processing Capacity
- Marking, punching & shearing in one line
- Multiple steps combined into continuous process
- Maintains process consistency throughout

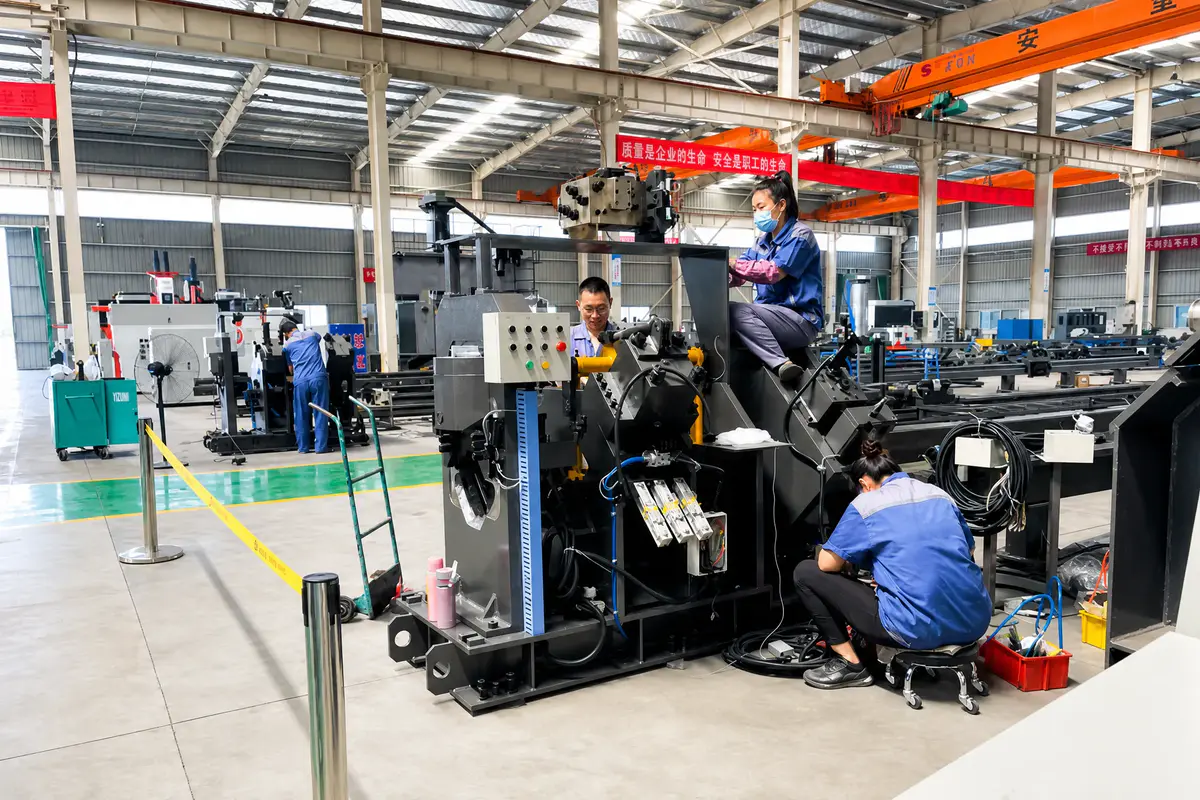

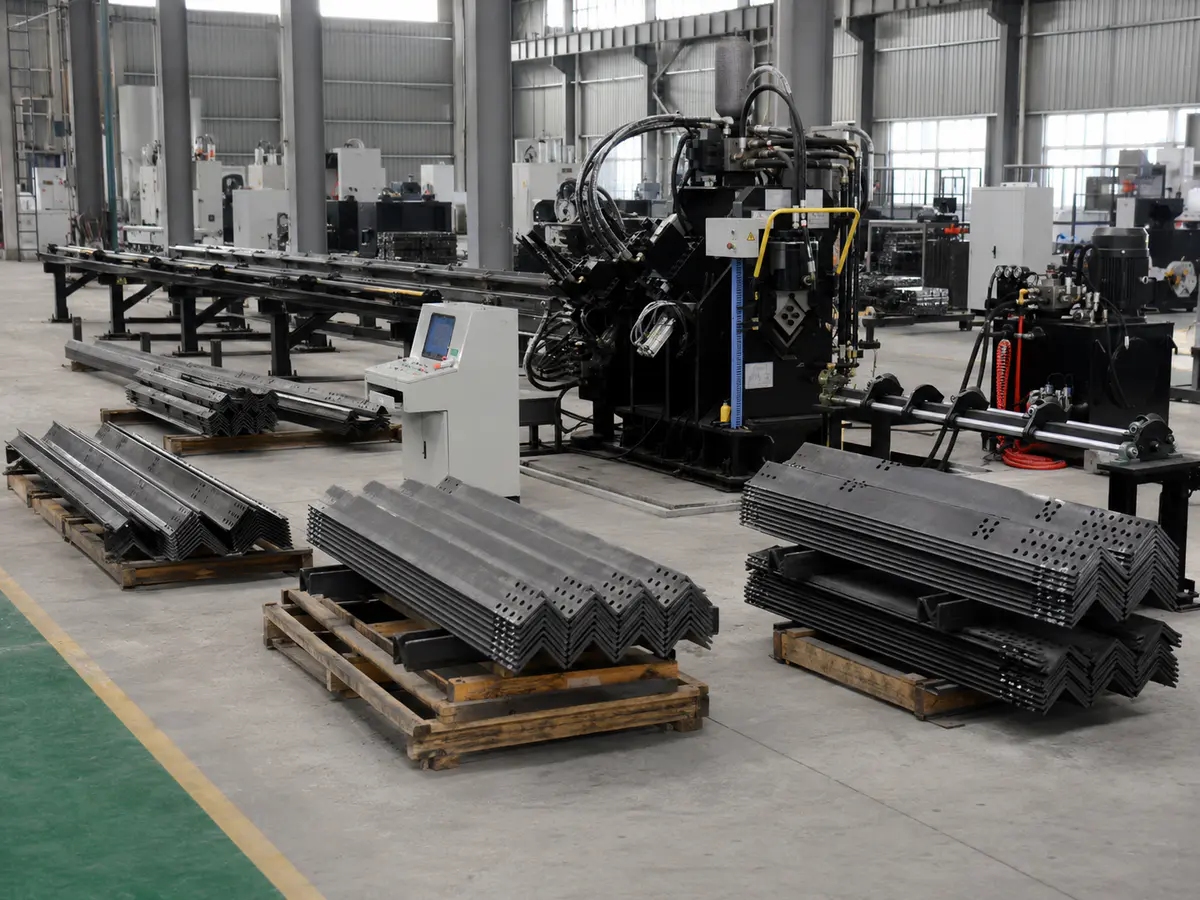

Continuous Production Capability
- Supports long operating cycles
- Meets transmission tower project requirements
- Stable production over extended periods

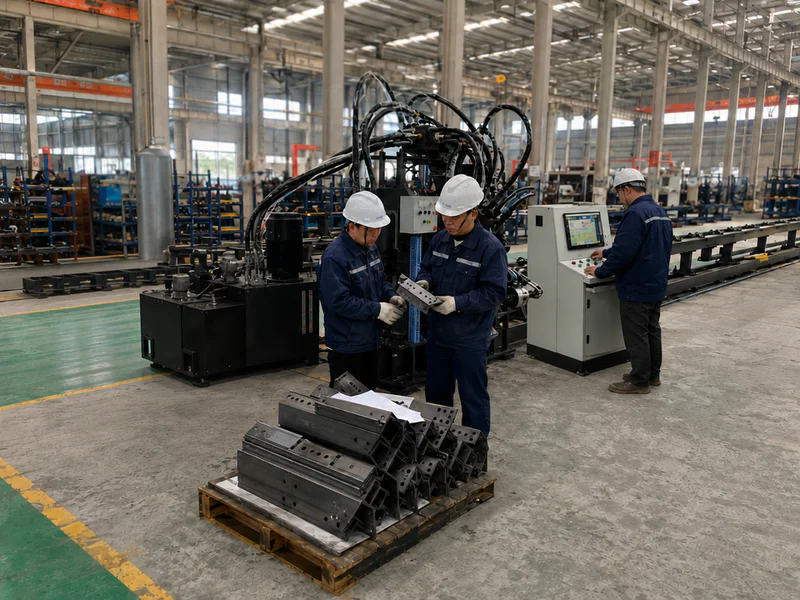

Capacity Matching Project Requirements
- Configured by production volume & shifts
- Based on actual manufacturing needs
- Not theoretical maximum output
Application Range & Processing Limits
Typical application scope of CNC angle lines based on configuration — different models are designed for different angle steel sizes and materials.
The application range of CNC angle lines varies depending on machine configuration and project requirements. The following information describes typical application conditions.
Typical Angle Steel Size Range
| Item | Description |
|---|---|
| Applicable Angle Steel Sizes | Different CNC angle line models are designed for different ranges of angle steel sizes |
| Minimum Angle Steel Size | Defined by line structure and tooling configuration. Eg. 40x40x3mm |
| Maximum Angle Steel Size | Determined by machine design and project requirements |
| Size Range Selection | Confirmed according to production needs and angle steel specifications |
The final application range and processing limits are confirmed based on actual angle steel specifications, material properties and operating conditions.
Factory Capability & Manufacturing Strength
How our factory supports reliable CNC angle line projects — from engineering design to manufacturing and delivery.

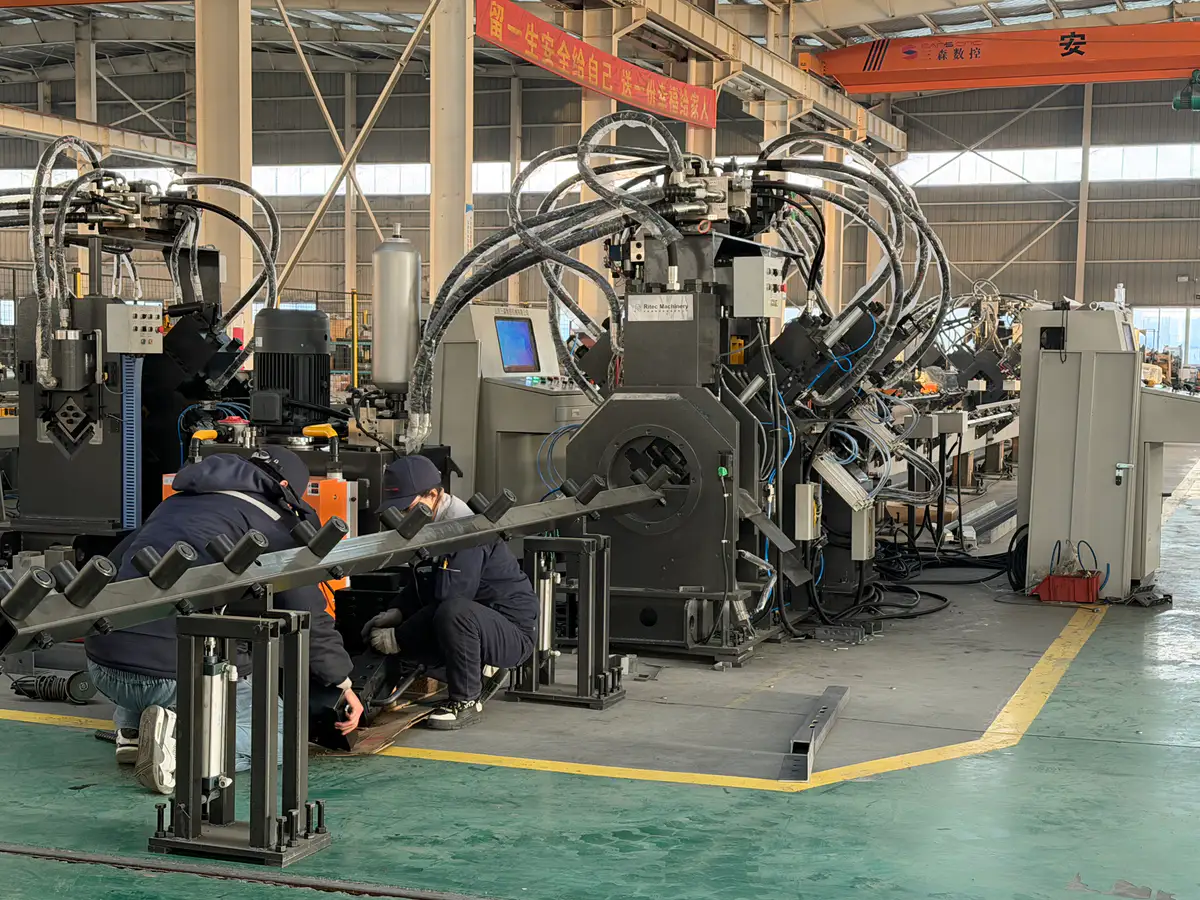

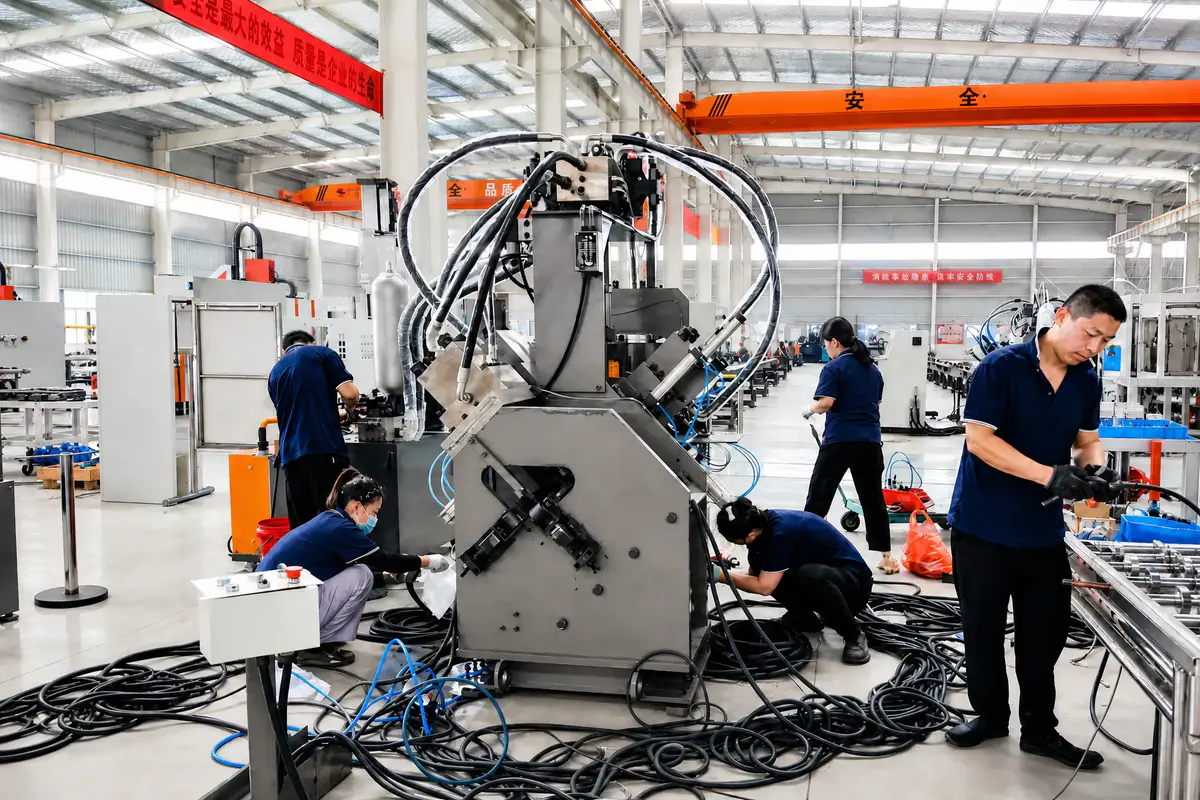

Dedicated CNC Angle Line Manufacturing
Our factory specializes in the design and manufacturing of CNC angle lines, with dedicated production areas and assembly processes focused on angle steel fabrication equipment.
Engineering Team with Project Experience
Our engineering team is involved from project evaluation to final delivery, ensuring that machine configuration and design details are aligned with actual production requirements.

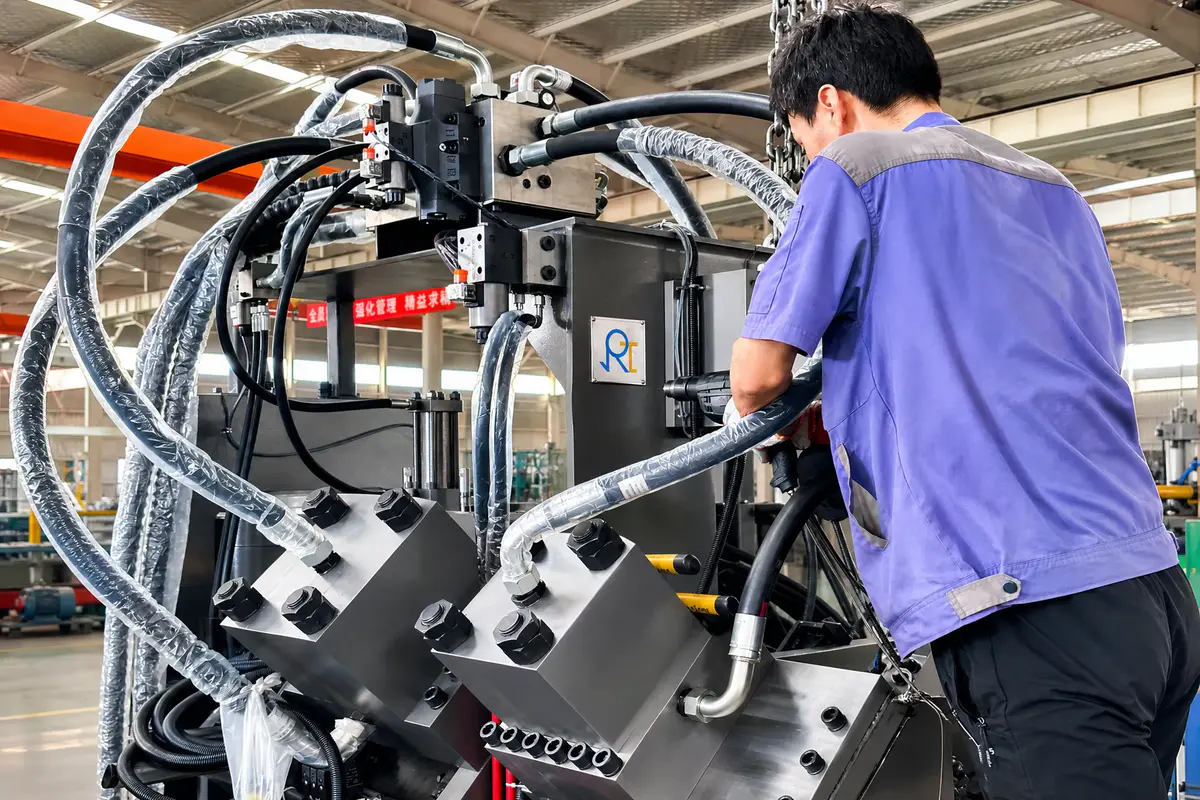

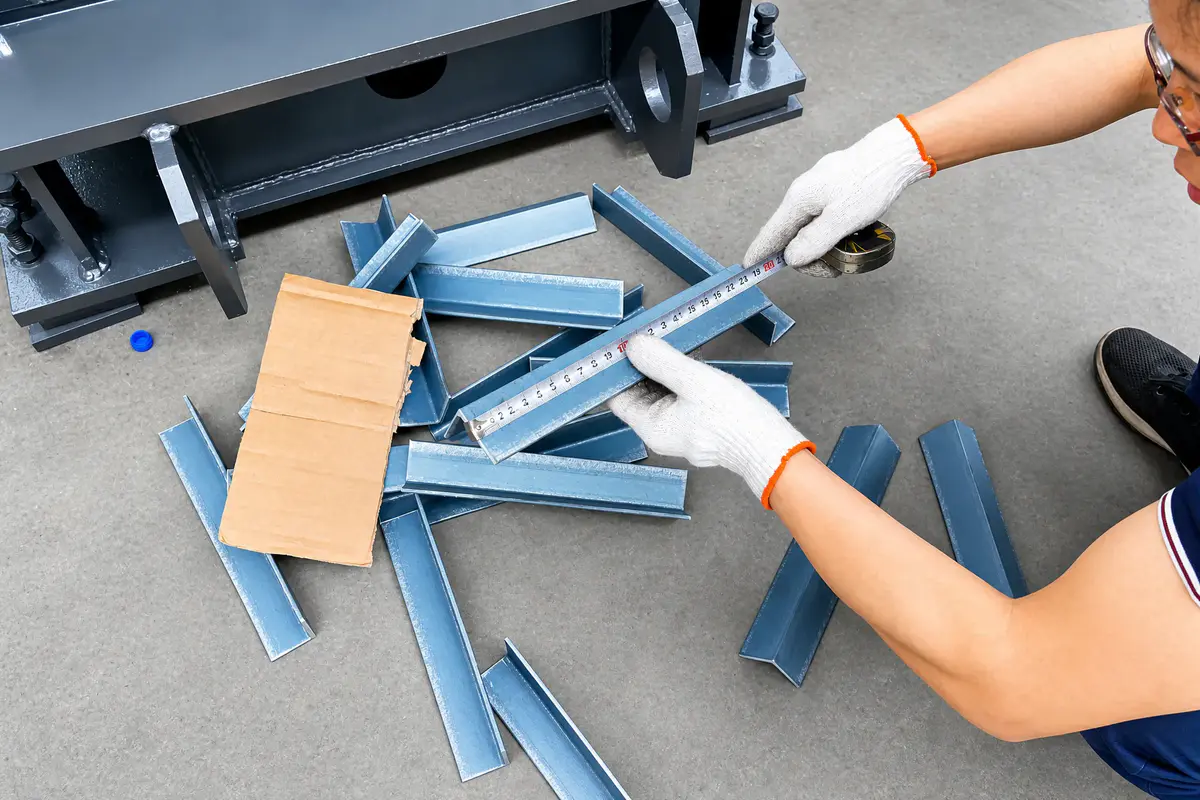

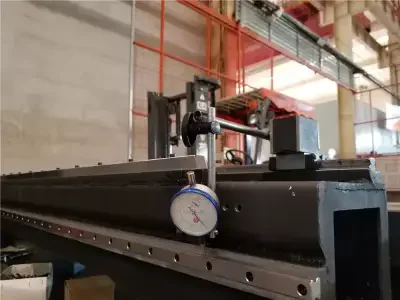

In-House Manufacturing & Quality Control
Key machining, assembly and inspection processes are completed in-house, allowing better control over manufacturing quality and delivery schedules.

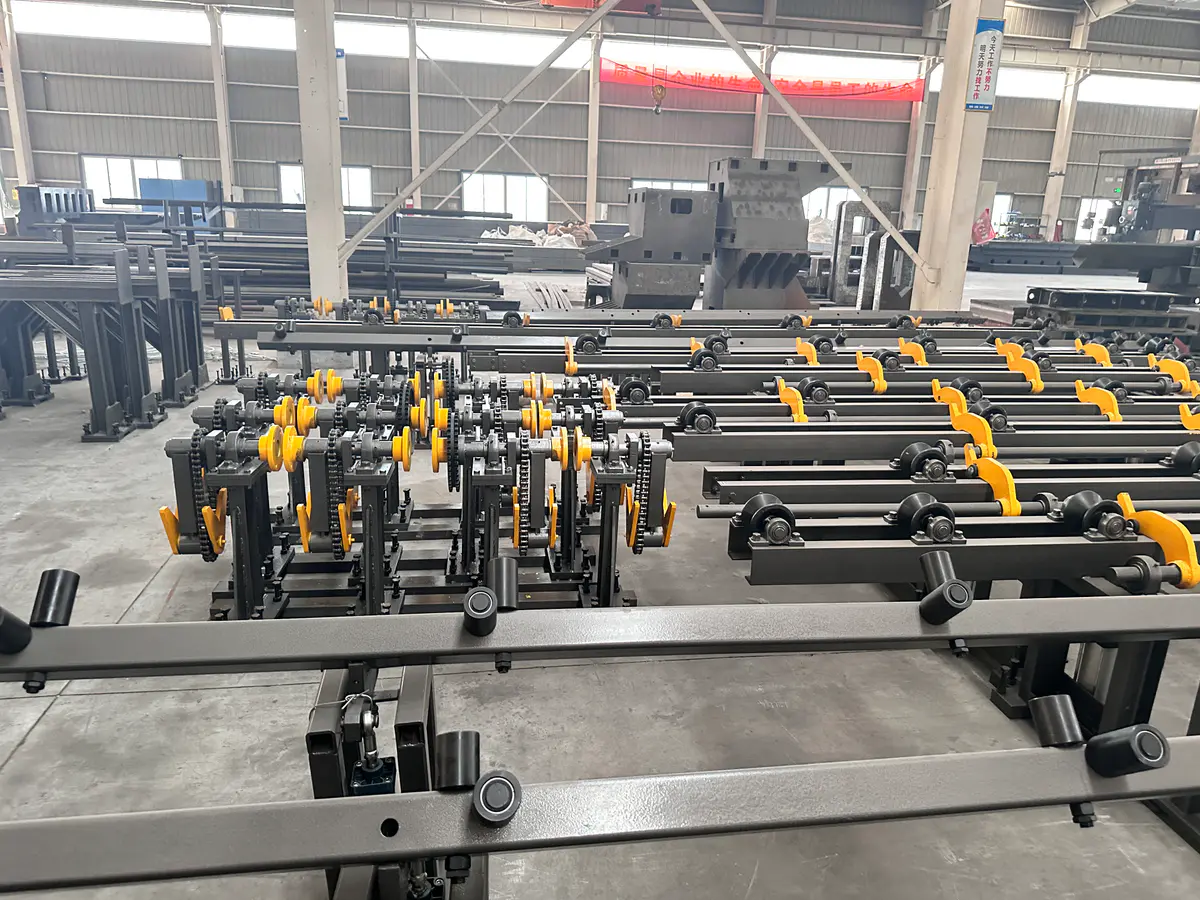

Customized Configuration for Project Needs
CNC angle lines are configured according to specific project requirements, including angle steel specifications, production capacity and working conditions.

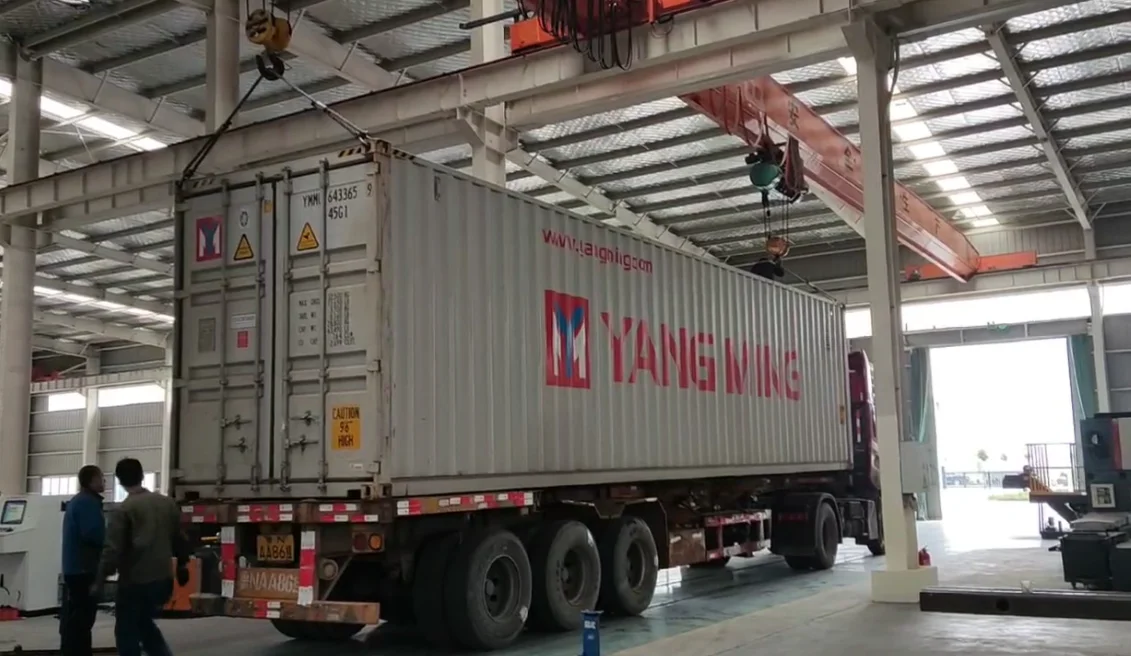

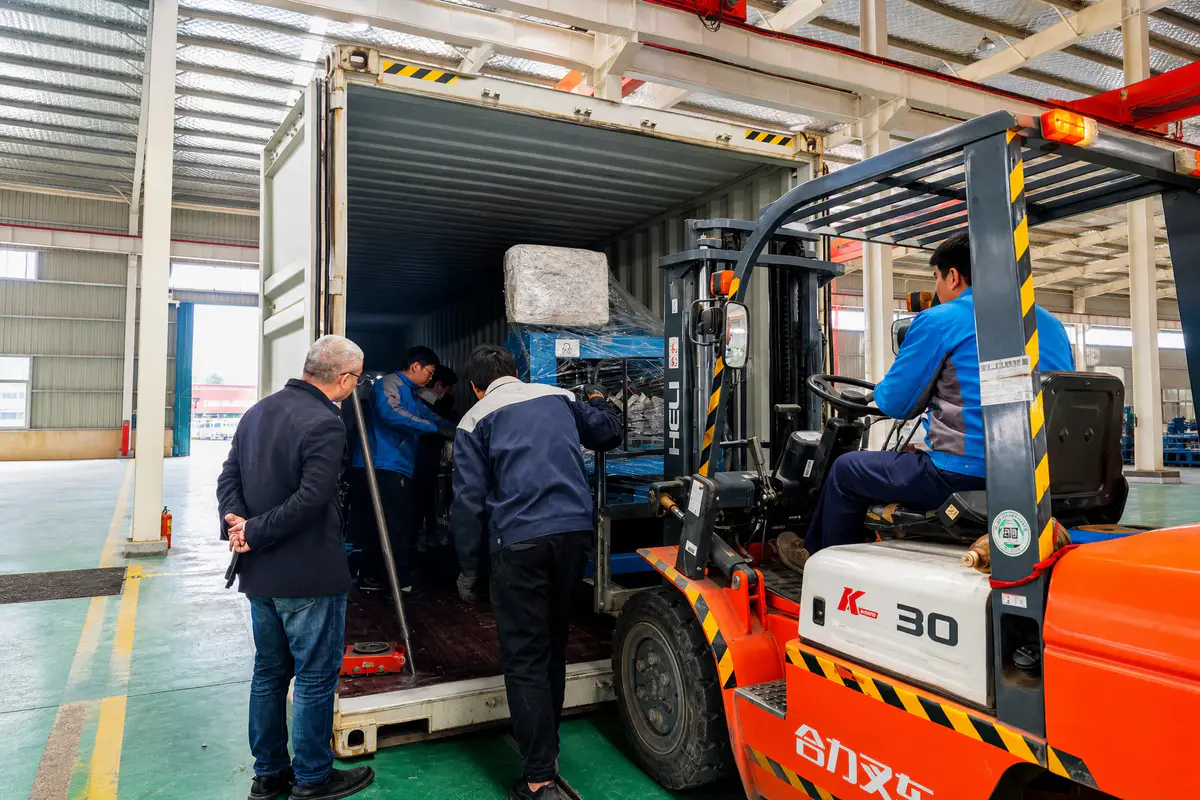

Experience in Overseas Project Delivery
The factory has experience in delivering CNC angle lines to overseas customers, supporting installation, commissioning and training according to local conditions.
Long-Term Project Support
Factory capability is reflected not only in manufacturing equipment, but also in the ability to support long-term and stable operation of CNC angle lines.
18+
Years Experience
50+
Countries Served
Project Experience & Delivery Capability
Proven experience in CNC angle line projects — from factory manufacturing to overseas project delivery.
CNC angle lines manufactured by our factory have been delivered to customers in multiple countries and regions, supporting transmission tower and steel structure projects under different working conditions.
50+
Countries Served
500+
Lines Delivered
18+
Years Experience
24/7
Technical Support
Our Project Capability

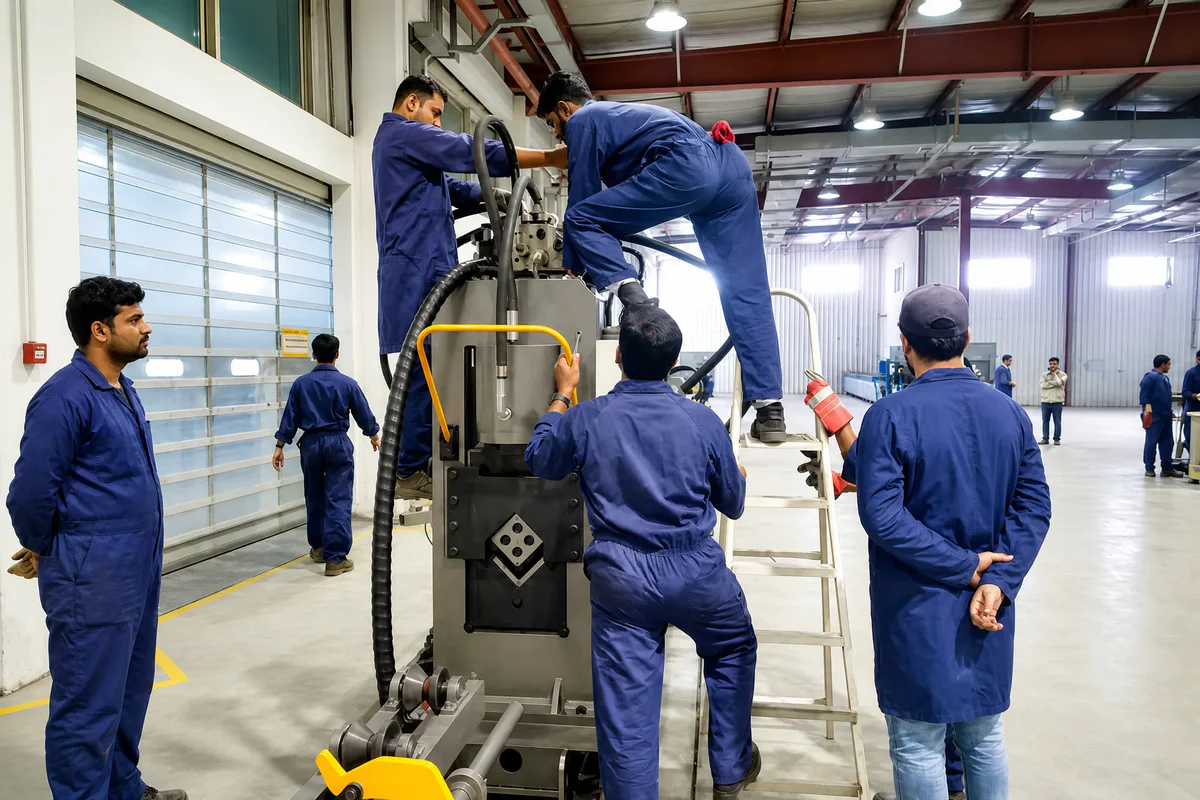

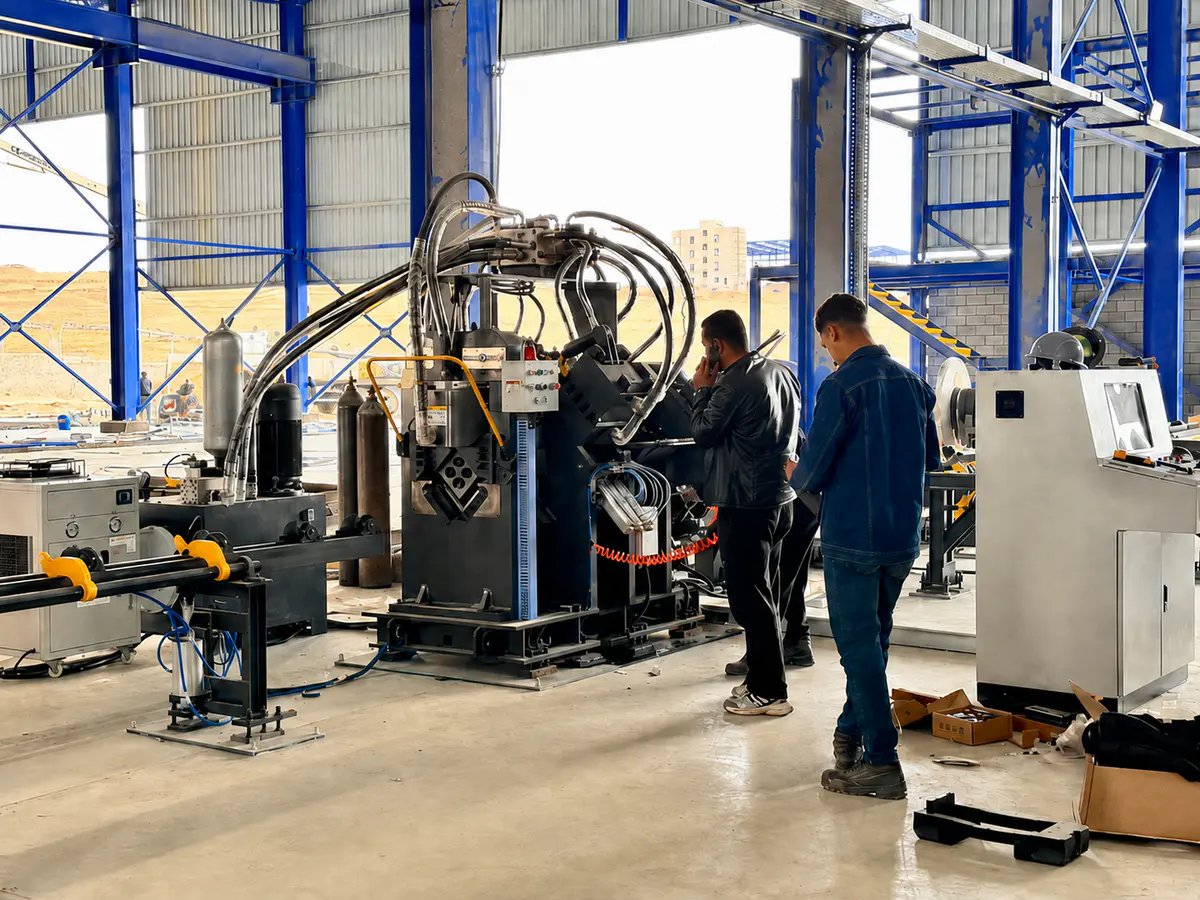

Installation, Training & Operation Support
Support to help you run the CNC angle line in daily production — from factory testing to long-term technical assistance.

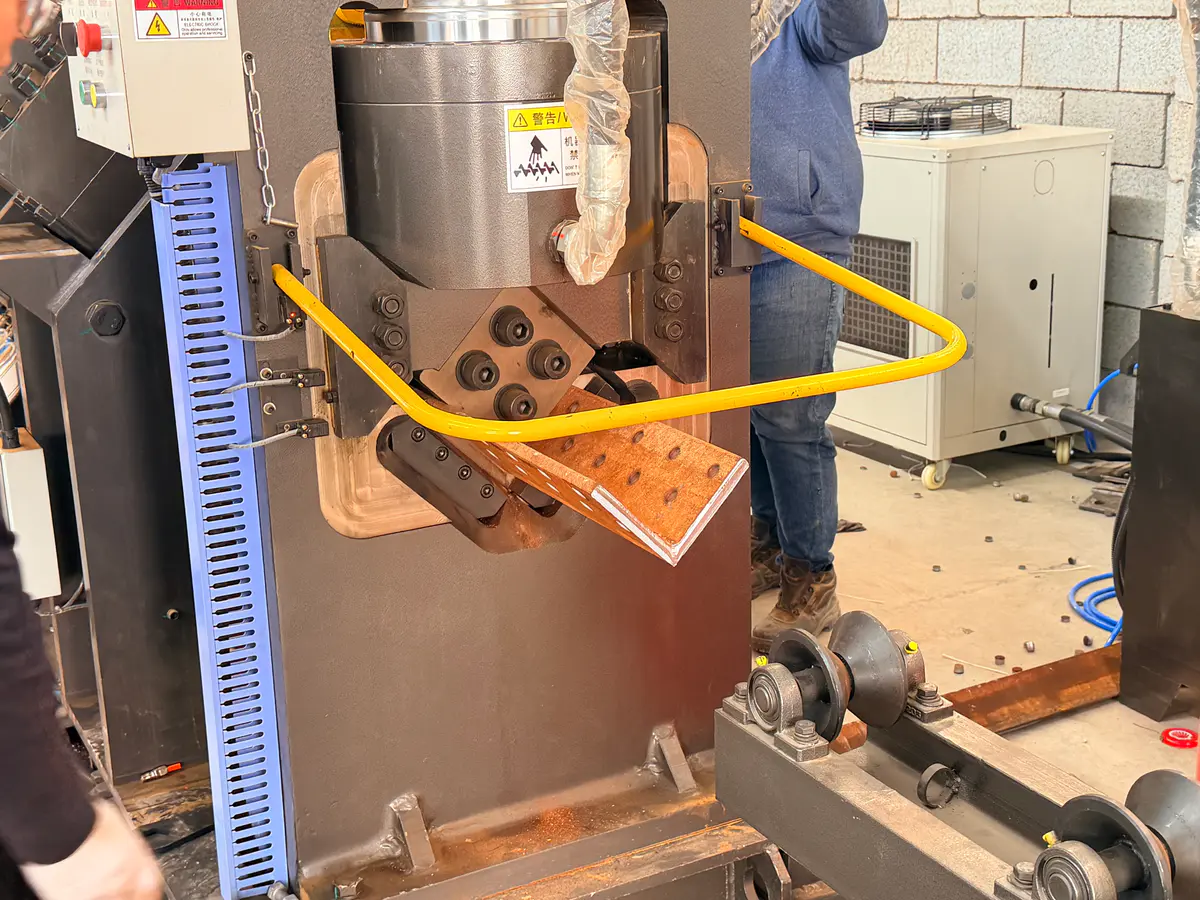

100% Factory Tested
Before every shipment
Support is provided to help you put the CNC angle line into stable production and maintain reliable operation over time.
What Our Customers Say
Feedback from customers who have put CNC angle lines into production — real projects, real results.
"We selected this CNC angle line for our transmission tower production. After installation and commissioning, the line has been running steadily in daily operation. The processing accuracy is consistent, and the production flow fits well with our factory layout."
Production Manager
Transmission Tower Manufacturer
"This CNC angle line helped us replace several separate processing steps. Marking, punching and shearing are completed in one line, which simplified our production process and reduced manual handling."
Factory Owner
Steel Structure Fabrication Factory
"Our project required continuous production over long working hours. The CNC angle line has shown stable performance during continuous operation, which was important for meeting our project schedule."
Project Manager
Power Infrastructure Contractor
"Before purchasing, we were concerned about installation and operation. With technical support and training, our operators were able to run the CNC angle line smoothly in daily production."
Technical Director
Overseas Customer, Developing Market
"The machine configuration was adjusted according to our angle steel specifications. After commissioning, the CNC angle line matched our production requirements and worked reliably for our regular orders."
Workshop Supervisor
Angle Steel Processing Workshop
CNC Angle Line — Common Questions
Answers to questions commonly asked by buyers evaluating CNC angle lines for transmission tower and steel structure projects.
Get CNC Angle Line Solution
Tell us about your angle steel production requirements
You are not just requesting a price.
By sharing your angle steel processing requirements, you receive a CNC angle line solution configured for your actual production needs, including machine configuration and technical support considerations.
Recommended Information to Share
- Angle steel sizes and thickness
- Material type and strength
- Application (transmission tower, steel structure, tower project)
- Expected production volume or working hours
- Any special processing or project requirements
Or contact us directly:
Please provide the following information to help us understand your project.
